MV/LV SWITCHGEAR · LOW VOLTAGE PANELS

Distribution panels.
Engineered for the floor.

PCC – Power Control Centre

415 V / 800 V / 6300 A

Power Control Centre panels supervise and control voltage and current flow at the heart of an industrial or substation distribution network. Built from heavy-grade CRCA steel and engineered for sustained high-current duty, the PCC houses feeder breakers, monitoring devices and control devices in a single robust enclosure.

Characteristics

  • Manufactured to Form 3 & Form 4 construction.
  • Ample cabling space for easy connections.
  • Cable entry from the top or bottom — suitable for bus-duct entry.
  • Customised designs based on specific project requirements.

Technical

  • Conforms to IEC 61439-1 & 2.
  • Rated current up to 6300 A.
  • Ingress protection: IP4X to IP52, IP55 (outdoor).
PCC Power Control Centre Panel

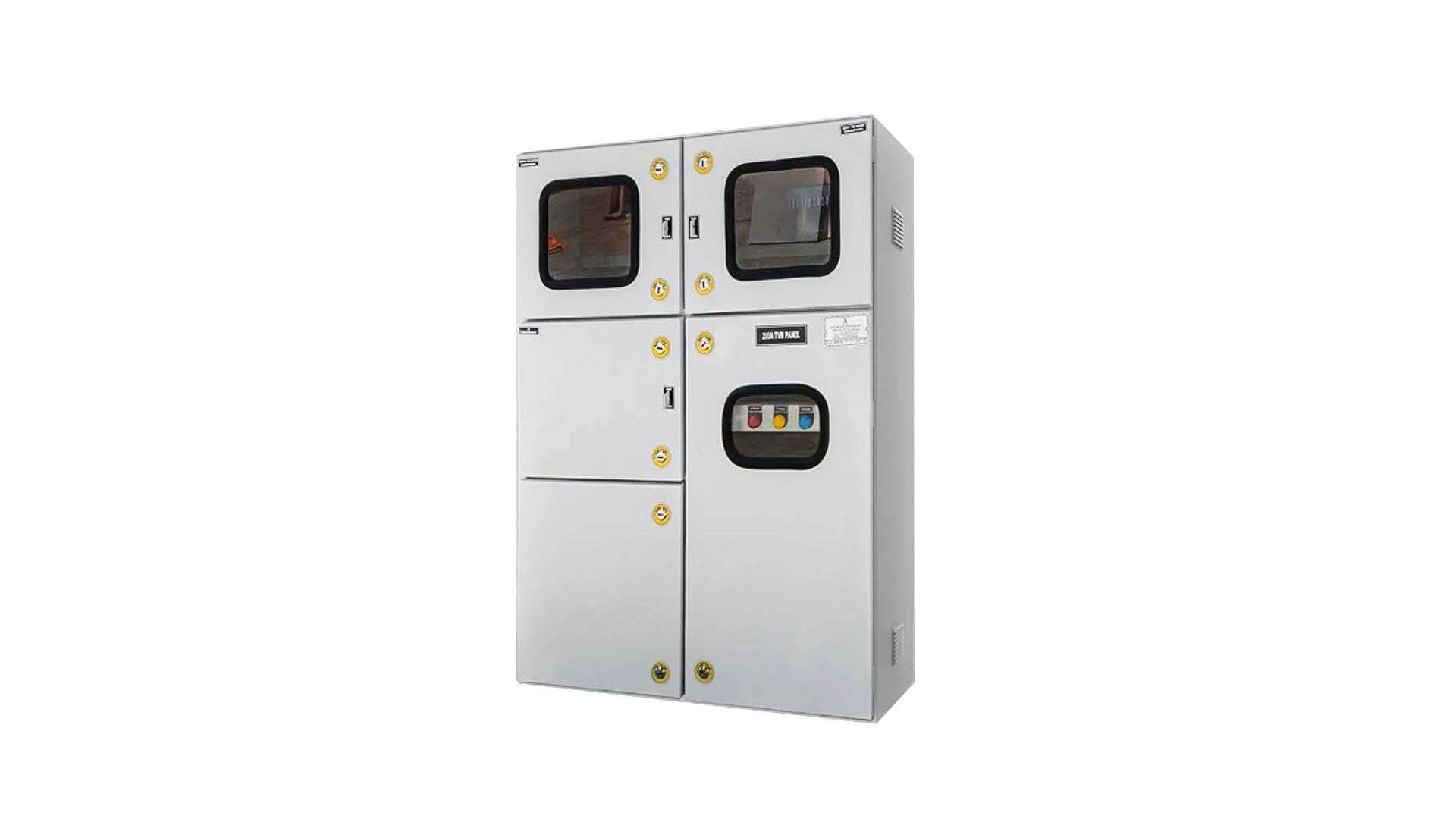

Meter Panel Board

415 V / 800 V

Meter Panel Boards house multiple metering compartments in a totally enclosed, self-supporting, dust- and vermin-tight enclosure. Fabricated from 14G/16G CRCA steel with cross-linked foam gaskets on doors, our metering panels suit indoor and outdoor LT tariff metering as defined by local authorities.

Characteristics

  • Indoor or outdoor mounting — weatherproof with canopy.
  • Floor-standing and wall-mounted variants.
  • Sealable metering compartments as per EB norms.
  • Adequate spacing for incoming and outgoing cables.
  • Customised design to meet end-user requirements.

Technical

  • Conforms to IP 54 degree of protection.
  • Powder-coated 14G/16G CRCA steel construction.
  • LT Metering Panel for Tariff Metering designed per local authority requirements.
Meter Panel Board

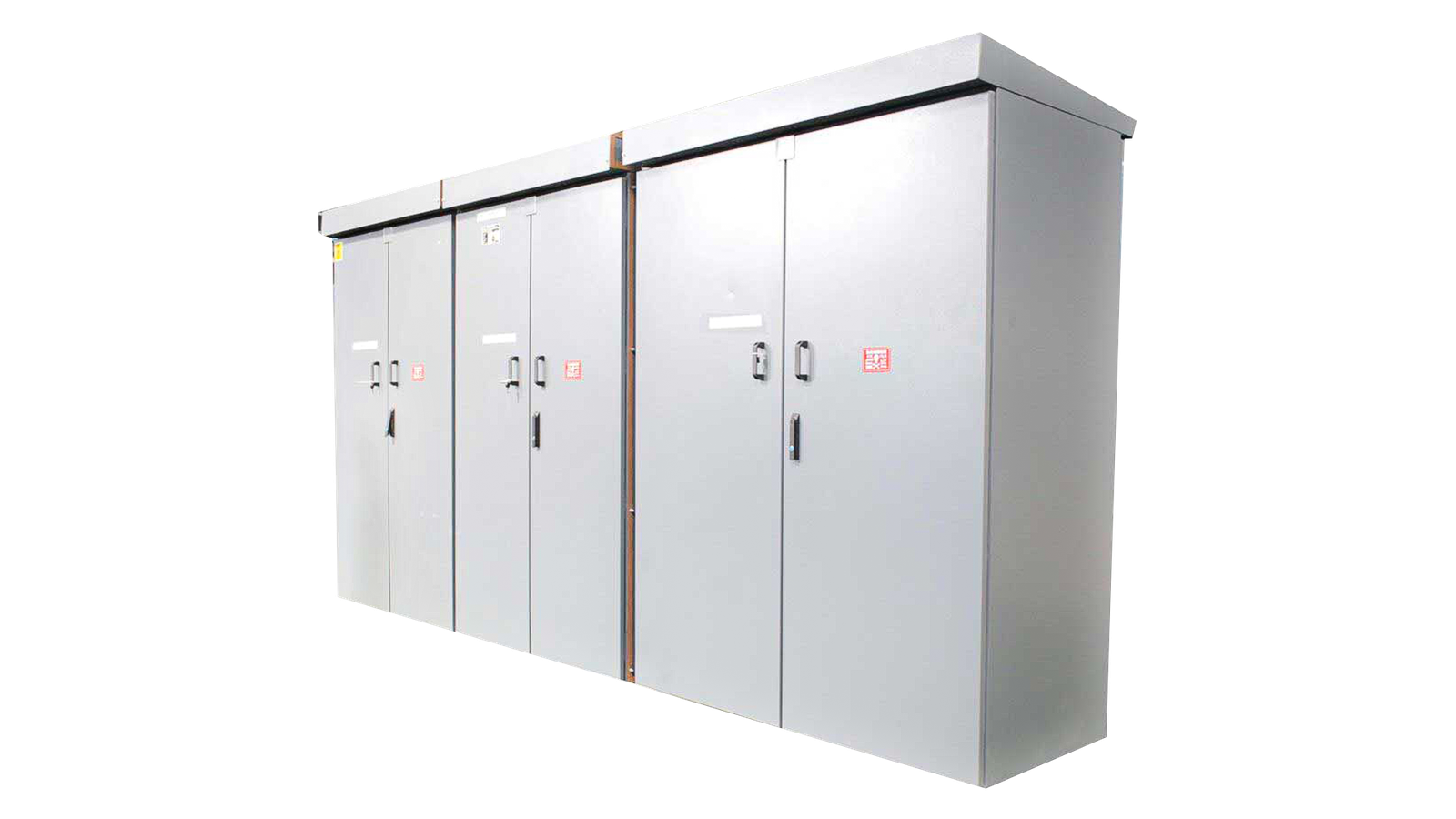

Feeder Pillar

415 V / 800 V

A Feeder Pillar — also known as a power box or distribution pillar — is a weather-rated enclosure that houses electrical equipment and acts as a central point for control and distribution of electricity to outgoing circuits.

Characteristics

  • Floor-standing and wall-mounted variants.
  • Ample cabling space for easy connections.
  • Customised design to meet end-user requirements.
  • Maximum safety and reliability.

Technical

  • Manufactured to Form 2 to Form 4 construction.
  • Designed to IP42–IP55.
Feeder Pillar

MCC – Motor Control Centre

415 V / 800 V

Motor Control Centre panels provide a single central location to supervise and control multiple electric motors across commercial and industrial sites. Each MCC bay houses motor starters, fuses or circuit breakers, overload relays and power contactors with full metering and protection.

Characteristics

  • Withdrawable and fixed versions.
  • Cable entry from top or bottom.
  • Single-front and double-front configurations.
  • Full range of metering and protection systems.

Technical

  • Conforms to IEC 61439-1 & 2.
  • Rated up to 6300 A.
  • Manufactured for Form 2 to Form 4 construction.
MCC Motor Control Centre

APFC Panel

415 V / 800 V

Automatic Power Factor Correction panels balance the reactive load on a power system, reducing electricity bills and improving operating efficiency. A microcontroller-based programmable regulator switches capacitor banks of appropriate capacitance, taking power factor up to 0.99 lag by continuously monitoring inductive loads across phases.

Characteristics

  • Capacitor banks from 2.5 kvar to 100 kvar in multiple banks.
  • Wall-mounted or floor-standing.
  • With or without harmonic filters — AHF supported.
  • Top or bottom cable entry.

Technical

  • Conforms to IEC 61921.
  • Ingress protection up to IP4X–IP5X.
APFC Panel

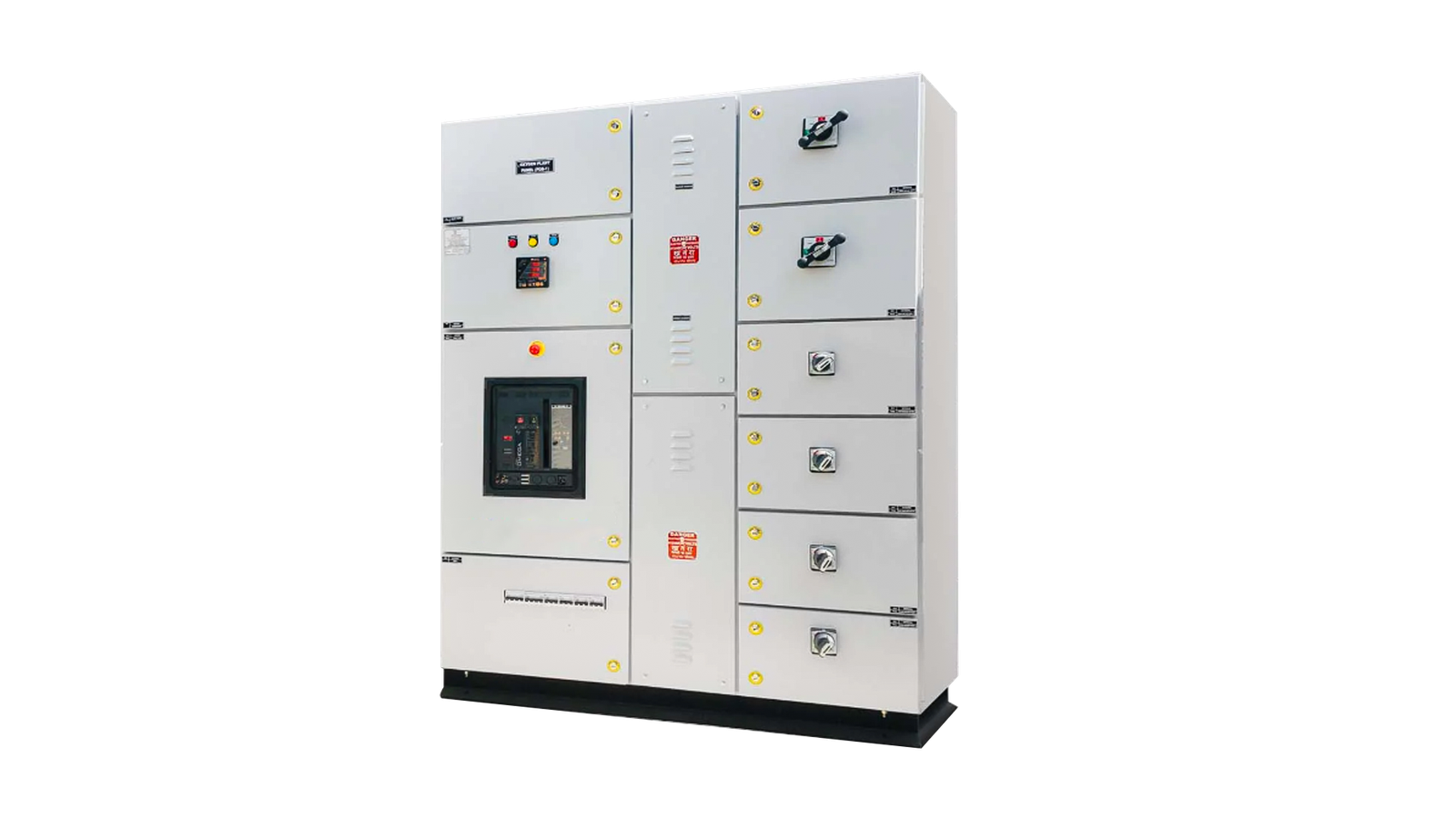

PDB – Power Distribution Board

415 V / 800 V

Power Distribution Boards distribute electrical power into subsidiary circuits via circuit breakers and switch-fuse units. PDBs come fully equipped with air circuit breakers, switch fuse units, contactors, protective relays, fuses, meters, indicating lamps, push-buttons, busbar and ancillary devices.

Characteristics

  • Tailor-made fabricated DB.
  • Customised design to meet end-user requirements.
  • Available in row-type distribution and pan-assembly (single or multi-split) in flush or surface versions.

Technical

  • Ingress protection: IP 4X & IP 5X.
PDB Power Distribution Board
